Overview

Let's discover Nialabs APIS in less than 5 minutes.

Getting Started - Biometric Web Api V1

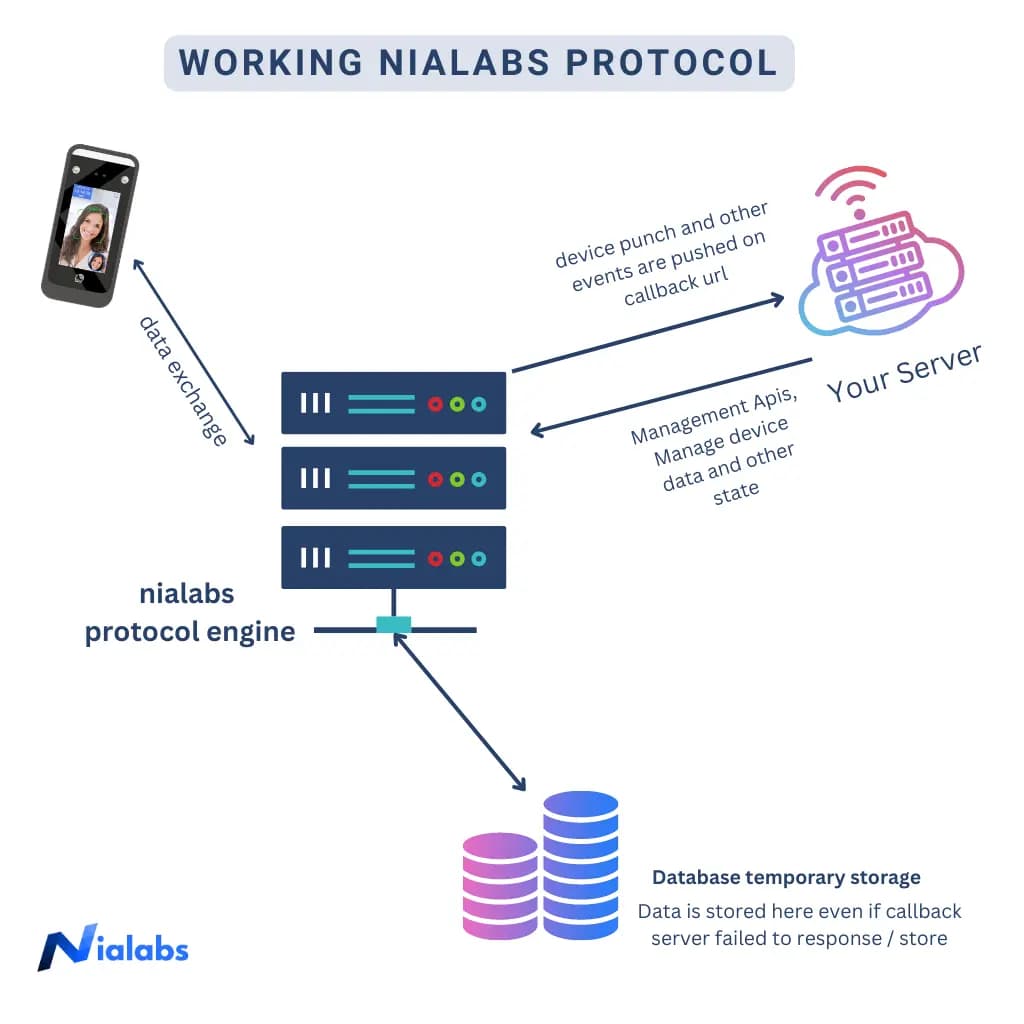

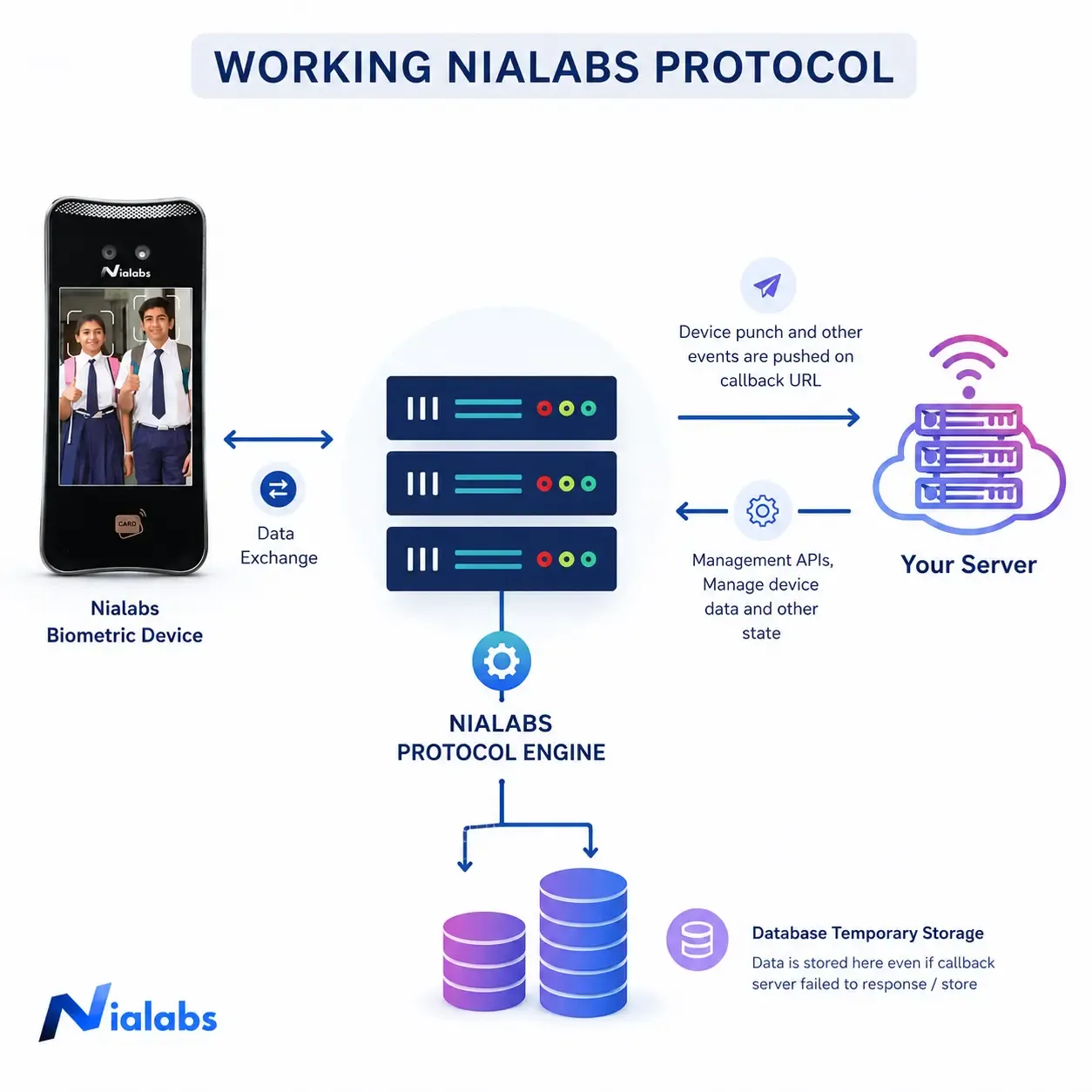

Nialabs Engine Top Level Design

Integration is simple

Receiving realtime data from nialabs server is very easy to integrate. You just need to enable a POST url on your server on which our server will send realtime push data.

What you'll need

• Your cloud server webhook(callback) url
• On this url nialabs server will send push data.

Nialabs portal

After purchasing the devices / or apis you will be given credentials of our APIS monitor portal.

Types of APIS

Callback API

Punch data and other events pushed to your server(on callback url) realtime.

Management API

Your server will call nialabs api to add / update data on device and manage device states.

Format of Apis

• every request originating either from your server or from nialabs server contains two types of data.
• one is query params. i.e. stgid=xxxx, where xxxx is the service tag number or serial number of the device.
• other is post data. which contains the data of the punch / user / device

Following is the format of the data pushed in body section of the http request.

All the request must be in the specified format

  {
    ["operation"] : {
      ["operationType"] : {"operationData"},
      "OperationID": "string",
      "AuthToken": "string",
    }
  }

1. operation : the type of request operation. i.e. Realtime / Add / Load / Delete and so on.
2. operationType : specified the type of the operation i.e. User / Photo / Template and so on.
3. operationData : the actual data of the operation required to perform the logic. the format varies based on the operation and operation type.
4. OperationID : the unique operation id for the operation.
5. AuthToken : (optional) required to validate the authenticity of the request.
