About the system
What is a door access control system?
A door access control system is essentially a digital door-entry device that determines the identity of those allowed access to an area and their access times, based on authenticated digital credentials rather than keys. It consists of three main components: digital credentials, a doorside reader or controller, and a cloud dashboard with live logging of door access activity.
In essence, you hand over a credential, the machine confirms the system recognises it, and if a match is found, your door unlocks—all while you're logged in. With contemporary systems, including biometrics, card sharing, and even buddy punching, the days of such options are long gone
Key Components
Access Method
RFID card, fingerprint, face recognition, NFC, or PIN password
Access Controller
Confirms the credentials and sends a command to lock/release door.
Cloud Dashboard
Logs the accesses and transmits them to external applications
Electronic Locks
Secures the door physically using EM locks, drop bolts or strike locks
How does a 4-door access control system work?

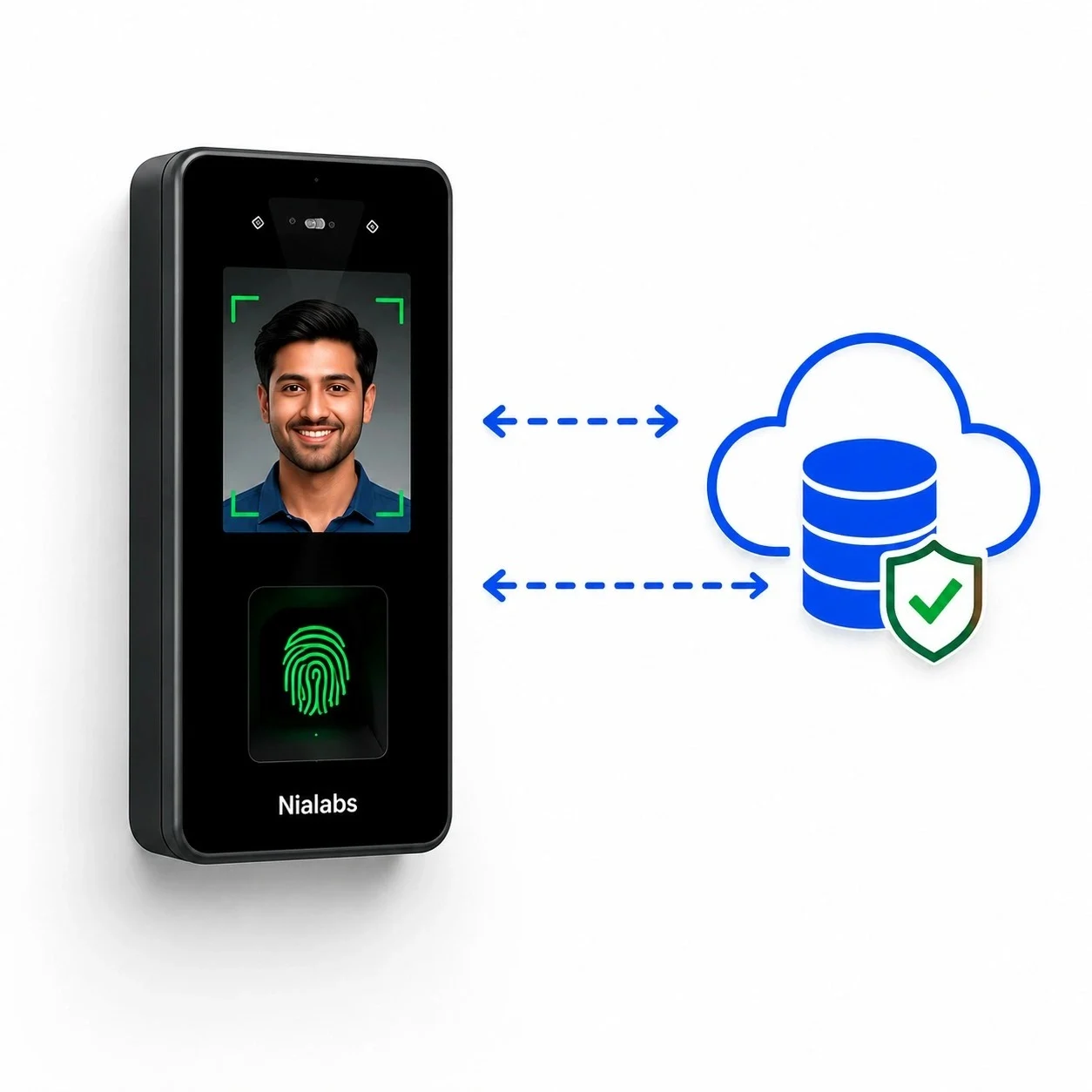

Present Credential
At any of the 4 connected doors, the user taps their card, scans their face or fingerprint, or enters a PIN at that door's reader.

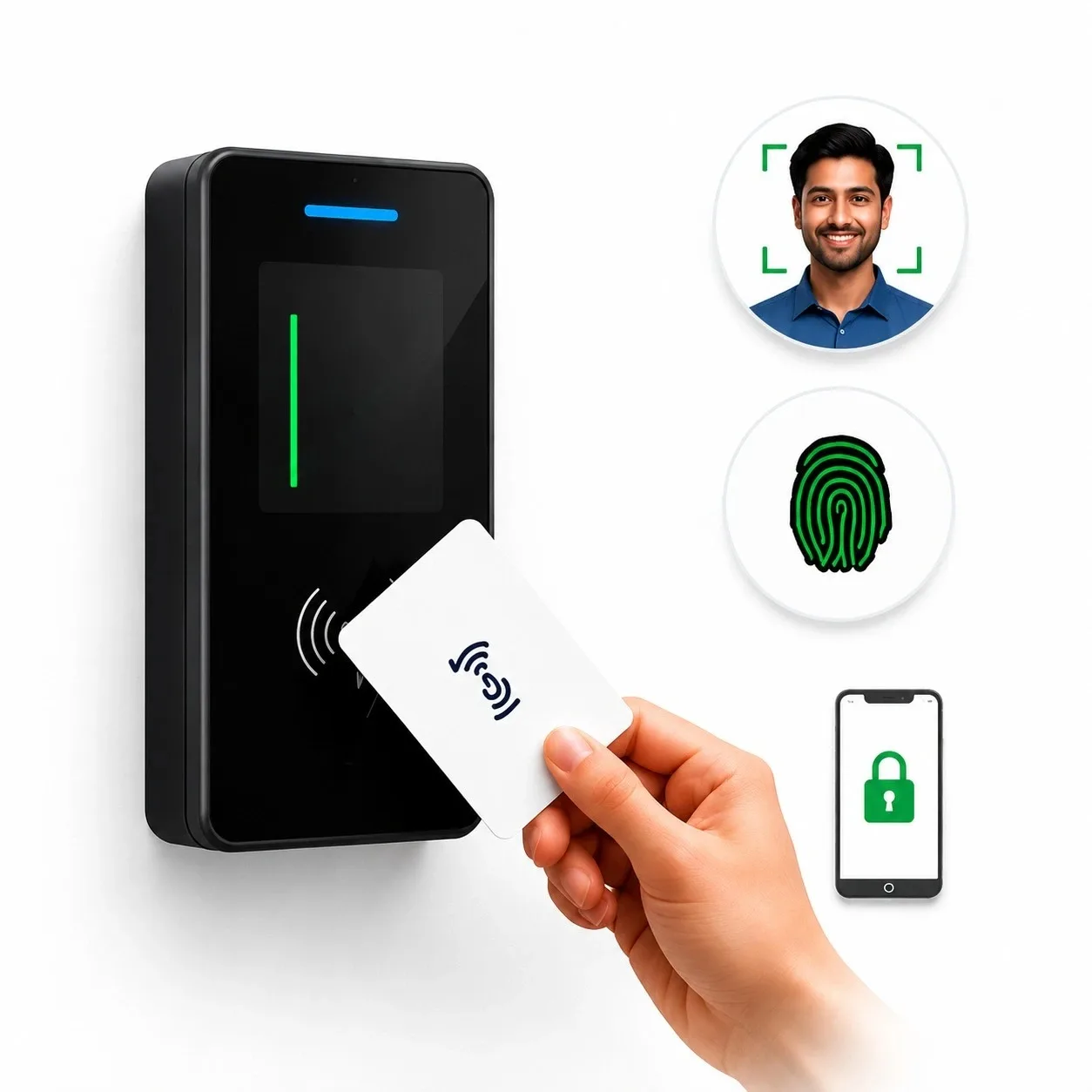

Authentication
The system checks the credential against the authorized user database in under a second, independently for each door, so different doors can run different access rules.

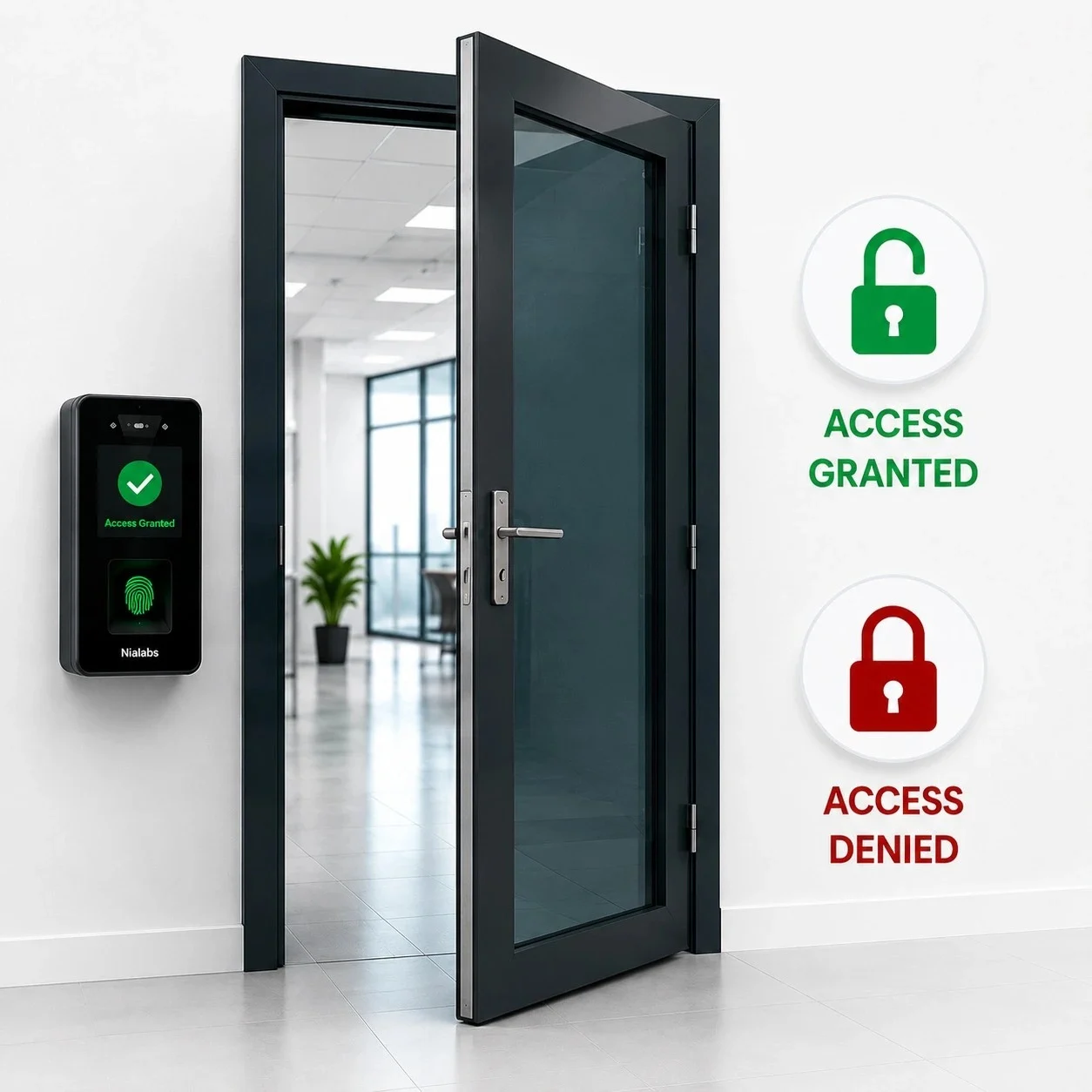

Grant / Deny Access
The specific door unlocks for authorized users; it stays locked and raises an alert for unauthorized attempts. The other 3 doors are unaffected.

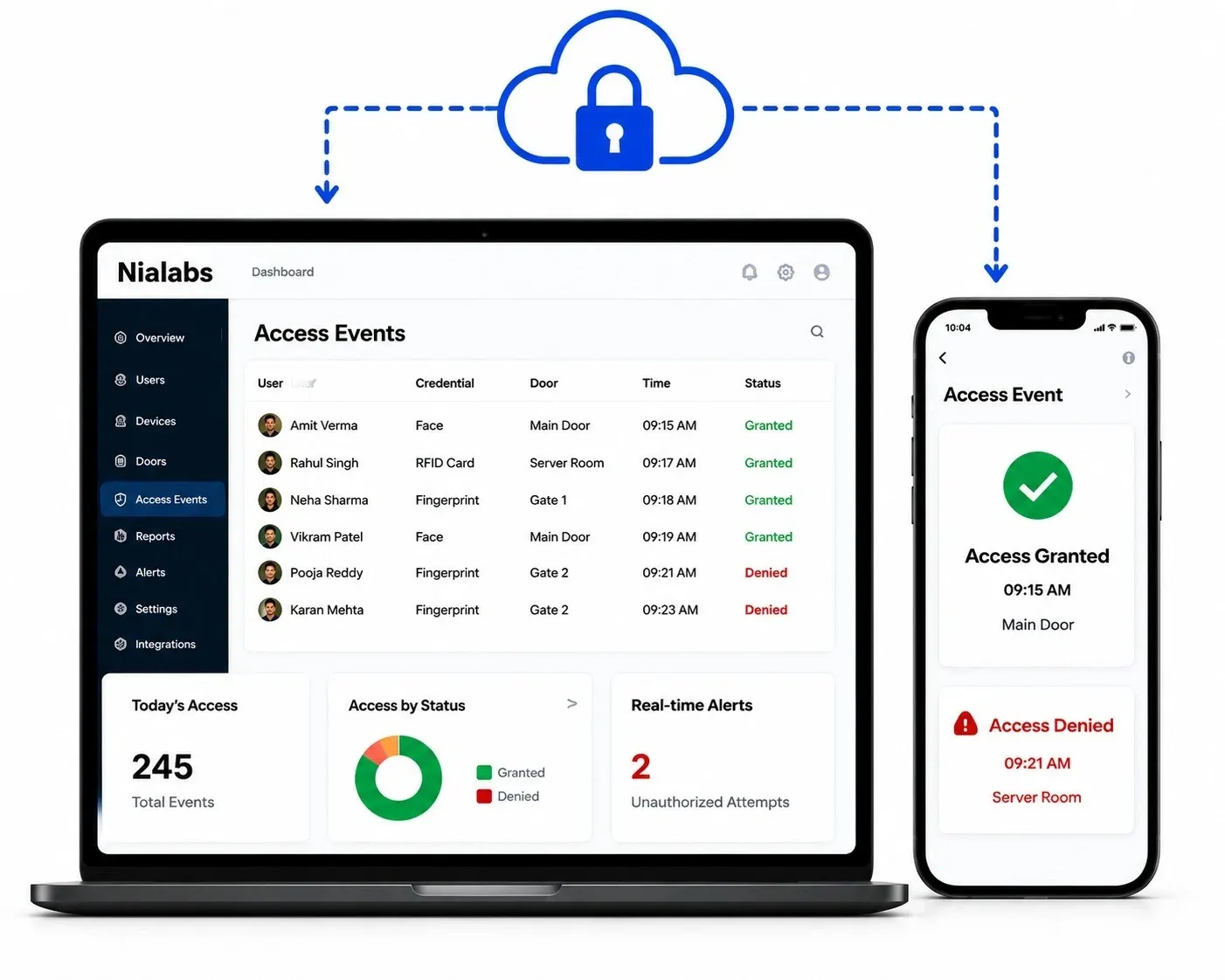

Log Event
Every event across all 4 doors is time-stamped and pushed live to the cloud dashboard via REST API and is available to any connected HRMS, ERP, or payroll system without manual exporting.
Credential types a 4-door access control system supports
A 4-door access control system isn't tied to one credential type—you can mix and match readers across its 4 doors (for example, RFID at the main entrance and biometric at the server room).
| Type | Best For | Read Range | Auth Speed |
|---|---|---|---|
| RFID Card | Office buildings, schools, universities | 2–10 cm | <1 sec |
| Biometric Fingerprint | High-security zones like server rooms, labs, record rooms | Contact | 1–2 sec |
| Face Recognition | Touchless, high-traffic doors—main entrances, lift lobbies | 0.5–3 m | <1 sec |
| NFC (Mobile) | Modern offices, visitor authentication via phone | 2–5 cm | <1 sec |
| PIN / Keypad | Backup credentials or budget-conscious doors | Contact | 2–3 sec |
RFID or Biometrics: Which is better for a 4-door access control system?
Choose biometrics if security and accuracy are the priority; it's harder to share or fake a fingerprint or face scan than a card. Choose RFID if speed is the priority — it's faster to tap in and out, which suits high-volume entries like schools or factory floors.
Key features of the Nialabs 4-door access control system
4 Independent Doors
Each door runs its own access rules, schedule, and credential type.
Fully Expandable
Add more systems as you grow past 4 doors or open new buildings.
Real-Time HRMS Sync
Live REST API sync; no batch files, no delayed exports.
Device Health Monitoring
Live online/offline status for the system and every door.
Reliable Offline Mode
Stores 100,000 logs locally, synced once reconnected.
High Biometric Accuracy
AI-tuned recognition works across varied lighting conditions.
Mobile Credential Support
Tap-and-unlock via NFC or QR straight from a phone.
Timed Access Rules
Set shift-based or restricted-zone schedules per door.
Centralized Dashboard
Manage every system across every branch from one screen.
Automated Reporting
Daily, weekly, and monthly access reports sent automatically.
Where to deploy a 4-door access control system
Built for sites with more than one entry point that still don't need a full multi-panel campus rollout.
Corporates
Control access across office floors based on employee role. Keka, greytHR, and any HRMS supported via API ensure immediate attendance-to-payroll sync.
Manufacturing & Factories
Biometric shift-wise attendance proof which is ready for PF/ESIC. Fastest to convert, as it is an important aspect where the shifts and their accuracy are concerned. Shift data is reflected in your payroll through our API sync.
Schools & Coaching Institutes
The entry of students can be made visible to all parents. ERP system integration with our systems is available to access attendance in real-time, and all entries of student/ visitor reflected automatically on the admin dashboard for reports in the school.
Hospitals
Ensures that restricted areas like ICUs and pharmacies can only be entered by authorized persons and ensures access is logged for your compliance audits. The access log information can even be provided directly to your hospital management systems via the API.
Retail & Warehousing
Log and monitor all of your staff and vendors entering/exiting a combination of sites via one central screen; access log data can be synced directly with your payroll and inventory management systems via our API.
Why Nialabs? What makes us different
-
API-First Integration: Live REST API, not batch files, connects any HRMS in minutes.
-
Real-Time Health Monitoring: Live online or offline status for every device, right there.
-
Proven at Scale: Built and stress-tested to handle 1M+ punches every day.
-
Cams Biometrics & Spectra are the nearest alternatives available but don't have an open REST API and real-time device health; hence, Nialabs is the only access control system in India offering direct live HRMS partnership capabilities.
99.9%
ACCURACY RATE
<0.5s
DETECTION SPEED
SEAMLESS SYNC
Integration with HRMS, ERP, and payroll
Supports Keka, greytHR, Drawinbox, Zoho, and any app with an API endpoint. While other products like ESSL/ZKTeco demand manual CSV upload and import or the need for additional middleware/connectors to sync, Nialabs devices automatically send all attendance punches in real-time through a REST API, making it hassle-free, and you get rid of syncing issues and delays.
Each such system gets the live punch data the minute it is recorded on the door and is ready for payroll processing without manual intervention.
Supported Platforms:
Looking for a Reliable
4-Door Access Control
System?
Talk to our experts and get a customized access control solution for your organization.
- Centralized multi-door management
- Biometric & RFID support
- Real-time event logging
